• 120X120X25
  • 120X120X25
  • 120X120X25

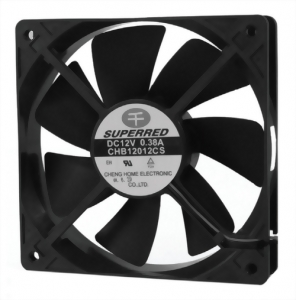

Model : chb12012cs

Q'ty :

Add To Inquiry

FRAME PLASTIC PBT 94V0
IMPELLER PLASTIC PBT 94V0
LEAD WIRE AWG26 "+" RED "-" BLACK ;
STANDARD UL 1007
OPTION SIGNAL OUTPUT
BEARING BALL BEARING OR SLEEVE BEARING

Model CHB12012D CHB12012C CHB12012B CHB12012A
Rated Voltage (DCV) 12 12 12 12
Operating Voltage (DCV) 7-13.8 7-13.8 7-13.8 7-13.8
Rated Input (W) 5.56 4.56 3.12 2.04
Rated Current (A) 0.47 0.38 0.26 0.17
Operating Temperature (ºC) -10~70 -10~70 -10~70 -10~70
Storage Temperature (ºC) -40~70 -40~70 -40~70 -40~70
Speed (RPM) 2600 2300 2000 1700
Max, .Air Flow M/MIN (CFM) 2.67(94.3) 2.36(83.8) 2.06(72.7) 1.75(61.8)
Max, .Air Pressure mm H2o 3.65 3.24 2.66 2.03
Noise (DB) 47 42 37 32
Bearing Type ○ ● ○ ● ○ ● ○ ●
Weight (g) APPROX.152 APPROX.152 APPROX.152 APPROX.152
OPTION : 12V
○:Sleeve bearing
●: Ball bering
