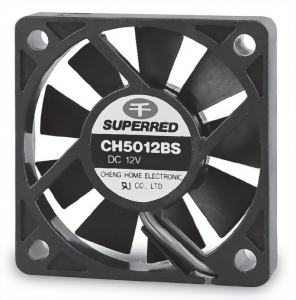

Model : 52X52X10

Q'ty :

Add To Inquiry

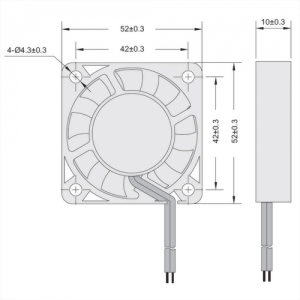

  • 52×52×10
  • 0.220~0.320 M3/MIN
MATERIAL
FRAME PLASTIC PBT 94V0
IMPELLER PLASTIC PBT 94V0
LEAD WIRE AWG26 "+" RED "-" BLACK
STANDARD UL 1007
OPTION SIGNAL OUTPUT
BEARING BALL BEARING OR SLEEVE BEARING

Model CH5012C CH5012B CH5012A
Rated Voltage (DCV) 12 12 12
Operating Voltage (DCV) 7-13.8 7-13.8 7-13.8
Rated Input (W) 1.44 0.96 0.84
Rated Current (A) 0.12 0.08 0.07
Operating Temperature (ºC) -10~70 -10~70 -10~70
Storage Temperature (ºC) -40~70 -40~70 -40~70
Speed (RPM) 6000 5000 4000
Max, .Air Flow M/MIN (CFM) 0.32(11.3) 0.28(9.89) 0.22(7.77)
Max, .Air Pressure mm H2o 3.7 3.0 2.4
Noise (DB) 28 26 24
Bearing Type △ ○ ● △ ○ ● △ ○ ●
Weight (g) APPROX.20 APPROX.20 APPROX.20
OPTION : 5V OR 12V
△:One ball-One Sleeve
○:Sleeve bearing
●: Ball bering
