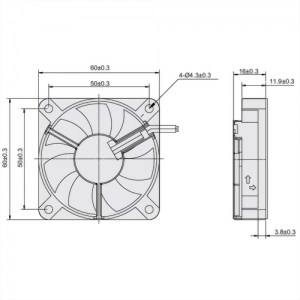

• 60X60X16
  • 60X60X16
  • 60X60X16

Model : chb6012db-m

Q'ty :

Add To Inquiry

FRAME PLASTIC PBT 94V0
IMPELLER PLASTIC PBT 94V0
LEAD WIRE AWG26 "+" RED "-" BLACK
STANDARD UL 1007
OPTION SIGNAL OUTPUT
BEARING BALL BEARING OR SLEEVE BEARING
OR ONE BALL ONE SLEEVE

Model CHB6012DX-M CHB6012CX-M CHB6012BX-M CHB6012AX-M
Rated Voltage (DCV) 12 12 12 12
Operating Voltage (DCV) 6-13.8 6-13.8 6-13.8 6-13.8
Rated Input (W) 2.64 1.92 1.44 1.2
Rated Current (A) 0.22 0.16 0.12 0.10
Operating Temperature (ºC) -10~70 -10~70 -10~70 -10~70
Storage Temperature (ºC) -40~70 -40~70 -40~70 -40~70
Speed (RPM) 4800 4200 3600 3000
Max, .Air Flow M/MIN (CFM) 0.545(19.25) 0.48(16.94) 0.41(14.48) 034(11.98)
Max, .Air Pressure mm H2o 3.56 2.85 2.14 1.54
Noise (DB) 39 36 32 29
Bearing Type ○ ● ○ ● ○ ● ○ ●
Weight (g) APPROX.31 APPROX.31 APPROX.31 APPROX.31
△:One ball-One Sleeve
○:Sleeve bearing
●: Ball bering
