• 60X60X23
  • 60X60X23
  • 60X60X23

Model : CHA6012bb

Q'ty :

Add To Inquiry

FRAME PLASTIC PBT 94V0
IMPELLER PLASTIC PBT 94V0
LEAD WIRE AWG26 "+" RED "-" BLACK
STANDARD UL 1007
OPTION SIGNAL OUTPUT
BEARING BALL BEARING OR SLEEVE BEARING

Model CHA6012E CHA6012D CHA6012C CHA6012B CHA6012A
Rated Voltage (DCV) 12 12 12 12 12
Operating Voltage (DCV) 6-13.8 6-13.8 6-13.8 6-13.8 6-13.8
Rated Input (W) 3.36 2.52 2.16 1.56 1.20
Rated Current (A) 0.28 0.21 0.18 0.13 0.10
Operating Temperature (ºC) -10~70 -10~70 -10~70 -10~70 -10~70
Storage Temperature (ºC) -40~70 -40~70 -40~70 -40~70 -40~70
Speed (RPM) 5300 4400 3900 3200 2700

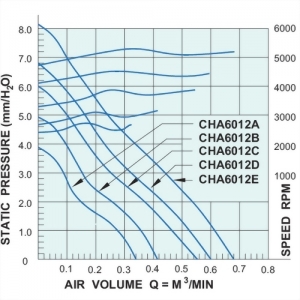

Max, .Air Flow M/MIN (CFM) 0.68(24.0) 0.58(20.48) 0.55(19.42) 0.41(14.48) 0.34(12.0)
Max, .Air Pressure mm H2o 8.22 6.8 6.0 4.9 3.9
Noise (DB) 37 33 29 26 23
Bearing Type ○ ● ○ ● ○ ● ○ ● ○ ●
Weight (g) APPROX.50 APPROX.50 APPROX.50 APPROX.50 APPROX.50
OPTION : 12V OR 24V
○:Sleeve bearing
●: Ball bering
