Model : BLOWER

Q'ty :

Add To Inquiry

  • 30×28×9
  • 0.025~0.033 M3/MIN
FRAME DIE-CAST ALUMINUM
IMPELLER PLASTIC PBT 94V0
LEAD WIRE AWG "+" RED "-" BLACK
STANDARD UL 1571
OPTION SIGNAL OUTPUT

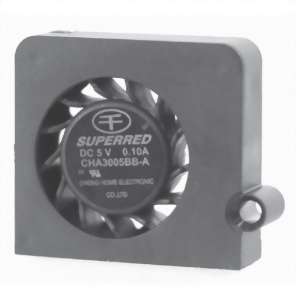

Model CHA3005C CHA3005B CHA3005A
Rated Voltage (DCV) 5 5 5
Operating Voltage (DCV) 3-6.5 3-6.5 3-6.5
Rated Input (W) 0.70 0.50 0.30
Rated Current (A) 0.14 0.10 0.06
Operating Temperature (ºC) -10~70 -10~70 -10~70
Storage Temperature (ºC) -40~70 -40~70 -40~70
Speed (RPM) 8500 7500 6500
Max, .Air Flow M/MIN (CFM) 0.033(1.165) 0.029(1.0237) 0.0251(0.886)
Max, .Air Pressure mm H2o 5.715 5.042 4.37
Noise (DB) 32.5 29.5 26.5
Bearing Type △ ○ ● △ ○ ● △ ○ ●
Weight (g) APPROX.7 APPROX.7 APPROX.7
OPTION : 5V
△:One ball-One Sleeve
○:Sleeve bearing
●: Ball bering
