50X50X10
| FRAME | PLASTIC PBT 94V0 |
|---|---|
| IMPELLER | PLASTIC PBT 94V0 |
| LEAD WIRE |
AWG26 "+" RED "-" BLACK STANDARD UL 1007 |
| OPTION | SIGNAL OUTPUT |
| BEARING | BALL BEARING OR SLEEVE BEARING |
| Model | CH5012C-N | CH5012B-N | CH5012A-N |
|---|---|---|---|
| Rated Voltage (DCV) | 12 | 12 | 12 |
| Operating Voltage (DCV) | 7-13.8 | 7-13.8 | 7-13.8 |
| Rated Input (W) | 1.44 | 0.84 | 0.72 |
| Rated Current (A) | 0.12 | 0.07 | 0.06 |
| Operating Temperature (ºC) | -10~70 | -10~70 | -10~70 |
| Storage Temperature (ºC) | -40~70 | -40~70 | -40~70 |
| Speed (RPM) | 6000 | 5000 | 4000 |

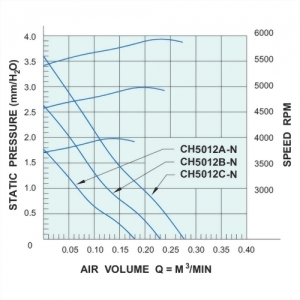

| Max, .Air Flow M3 /MIN (CFM) | 0.28(9.89) | 0.23(8.12) | 0.18(6.36) |
| Max, .Air Pressure mm H2o | 3.60 | 2.63 | 1.77 |
| Noise (DB) | 28 | 26 | 24 |
| Bearing Type | △ ○ ● | △ ○ ● | △ ○ ● |
| Weight (g) | APPROX.20 | APPROX.20 | APPROX.20 |
OPTION : 5V OR 12V
△:One ball-One Sleeve
○:Sleeve bearing
●: Ball bering
○:Sleeve bearing
●: Ball bering
