80X80X16
| FRAME | PLASTIC PBT 94V0 |
|---|---|
| IMPELLER | PLASTIC PBT 94V0 |
| LEAD WIRE |
AWG26 "+" RED "-" BLACK STANDARD UL 1007 |
| OPTION | SIGNAL OUTPUT |
| BEARING |
BALL BEARING OR SLEEVE BEARING |
| Model | CHA8012DX-M | CHA8012CX-M | CHA8012BX-M | CHA8012AX-M |
|---|---|---|---|---|
| Rated Voltage (DCV) | 12 | 12 | 12 | 12 |
| Operating Voltage (DCV) | 6-13.8 | 6-13.8 | 6-13.8 | 6-13.8 |
| Rated Input (W) | 3.12 | 2.04 | 1.44 | 1.08 |
| Rated Current (A) | 0.26 | 0.17 | 0.12 | 0.09 |
| Operating Temperature (ºC) | -10~70 | -10~70 | -10~70 | -10~70 |
| Storage Temperature (ºC) | -40~70 | -40~70 | -40~70 | -40~70 |
| Speed (RPM) | 3600 | 3000 | 2500 | 2100 |

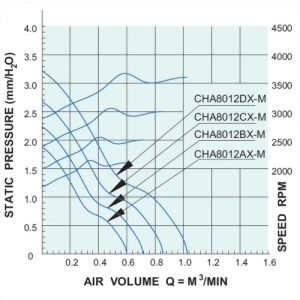

| Max, .Air Flow M3 /MIN (CFM) | 1.028(36.29) | 0.856(30.23) | 0.715(25.23) | 0.60(21.2) |
| Max, .Air Pressure mm H2o | 3.22 | 2.68 | 2.23 | 1.88 |
| Noise (DB) | 41 | 36.5 | 31.5 | 29 |
| Bearing Type | ○ ● | ○ ● | ○ ● | ○ ● |
| Weight (g) | APPROX.54 | APPROX.54 | APPROX.54 | APPROX.54 |
○:Sleeve bearing
●: Ball bering
●: Ball bering
