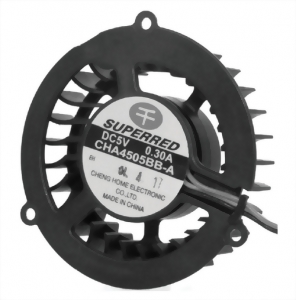

CHA4505ccc-XX
| FRAME | PLASTIC PBT 94V0 |
|---|---|
| IMPELLER | PLASTIC PBT 94V0 |
| LEAD WIRE |
AWG "+" RED "-" BLACK STANDARD UL 1007 |
| OPTION | SIGNAL OUTPUT |
| BEARING |
BALL BEARING OR SLEEVE BEARING |
| Model | CHA4505C | CHA4505B | CHA4505A |
|---|---|---|---|
| Rated Voltage (DCV) | 5 | 5 | 5 |
| Operating Voltage (DCV) | 3-6.5 | 3-6.5 | 3-6.5 |
| Rated Input (W) | 1.75 | 1.50 | 1.25 |
| Rated Current (A) | 0.35 | 0.30 | 0.25 |
| Operating Temperature (ºC) | -10 ~ 70 | -10 ~ 70 | -10 ~ 70 |
| Storage Temperature (ºC) | -40 ~ 70 | -40 ~ 70 | -40 ~ 70 |
| Speed (RPM) | 4200 | 3800 | 3400 |

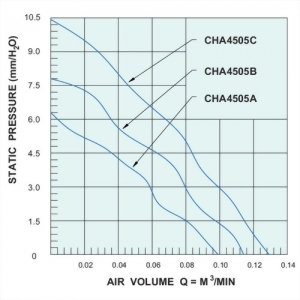

| Max, .Air Flow M3 /MIN (CFM) | 0.129(4.55) | 0.114(4.03) | 0.099(3.48) |
| Max, .Air Pressure mm H2o | 10.0 | 7.8 | 6.3 |
| Noise (DB) | 29.2 | 27 | 24.1 |
| Bearing Type | △ ● | △ ● | △ ● |
| Weight (g) | APPROX.17.2 | APPROX.17.2 | APPROX.17.2 |
OPTION : 12V
△:One ball-One Sleeve
●: Ball bering
●: Ball bering
